Shower Commodes

•

•

•

The product information is categorised as follows:

• FEATURES: common features and product range summary
• ATTENDANT PROPELLED
  • Transit Mobile Shower Commode with Slideout Footplate (Non-Weight Bearing)
  • Transit Mobile Shower Commode with Slideout Footplate (Weight Bearing)
  • Transit Mobile Shower Commode with Swingaway Footrests
  • Tilt Mobile Shower Commode with Swingaway Footrests
• SELF PROPELLED
  • Self Propel Mobile Shower Commode with Swingaway Footrests
  • Self Propel Mobile Shower Commode with Slideout Footplate (Weight Bearing)
• SHOWER COMMODE SEATS
• ACCESSORIES
  • Commode Pan & Bowl Carriers
  • Commode Pan & Bowls

FEATURES

Common Features

• Independently tested to conform to AS/NZS 3973:2009
• Multiple seat widths available
• Manufactured from durable stainless steel
• High quality 125mm diameter braking castors
• Warranty: 12 months with 36 months structural and 5 year anti-corrosion
• A variety of accessories are available
• Note that commode seats need to be ordered separately

Product Range Summary

Ranges:	K112	KA113	KA114	KA115	KA116	KA120	KA123	KA130
Weight Capacity	200, 300Kg	200, 300Kg	120, 200, 300Kg	200, 300Kg	200Kg	120, 200, 300Kg	200Kg	200Kg
Paediatric Option			Y			Y
Bariatric Option	Y	Y	Y	Y		Y
Height Adjustable Option			Y	Y		Y
Folding Option					Y			Y
Electric Option				Y
Operating Style
Attendant Propelled	Y	Y	Y	Y	Y
Self Propelled						Y	Y	Y
Tilt In Space				Y
Foot Rest Type
Swingaway			Y	Y	Y	Y		Y
Slide out, Weight Bearing		Y					Y
Slide out, Non-Weight Bearing	Y

ATTENDANT PROPELLED

Transit Mobile Shower Commode with Slideout Footplate
(Non-Weight Bearing)

•

•

•

Code	Capacity	Seat Width	Arm Rest	Back Rest
KA112S	200Kg	445mm	Swing-up	Straps
KA112S50	200Kg	500mm	Swing-up, Padded	Straps
KA112S55	300Kg	550mm	Removable, Padded	Padded
KA112S60	300Kg	600mm	Removable, Padded	Padded
KA112S65	300Kg	650mm	Removable, Padded	Padded

Transit Mobile Shower Commode with Slideout Footplate
(Weight Bearing)

•

•

•

Code	Capacity	Seat Width	Arm Rest	Back Rest
KA113S	200Kg	445mm	Swing-up	Straps
KA113S50	200Kg	500mm	Swing-up, Padded	Straps
KA113S55	300Kg	550mm	Removable, Padded	Padded
KA113S60	300Kg	600mm	Removable, Padded	Padded
KA113S65	300Kg	650mm	Removable, Padded	Padded

Transit Mobile Shower Commode with Swingaway Footrests

•

•

•

•

•

•

Code	Capacity	Seat Width	Arm Rest	Back Rest
KA114SC	120Kg	320mm	Swing-up	Straps
KA114SJ	200Kg	440mm	Swing-up	Straps
KA114S	200Kg	445mm	Swing-up	Straps
KA114S-HA, Height Adjustable	200Kg	445mm	Swing-up	Straps
KA116S, Folding	200Kg	445mm	Swing-up	Straps
KA114S50	200Kg	500mm	Swing-up, Padded	Straps
KA114S55	300Kg	550mm	Removable, Padded	Padded
KA114S60	300Kg	600mm	Removable, Padded	Padded
KA114S65	300Kg	650mm	Removable, Padded	Padded

Tilt Mobile Shower Commode with Swingaway Footrests

•

•

•

Code	Capacity	Seat Width	Arm Rest	Back Rest
KA115S40	200Kg	440mm	Swing-up, Padded	Straps
KA11507	200Kg	445mm	Swing-up, Padded	Straps
KA11508	200Kg	445mm	Removable, Side Panels, Padded	Straps
KA11507-HA, Height Adjustable	200Kg	445mm	Swing-up, Padded	Straps
KA11512	200Kg	500mm	Swing-up, Padded	Straps
KA11506, Electric	300Kg	550mm	Removable, Padded	Padded, Head Rest
KA115065, Electric	300Kg	650mm	Removable, Padded	Padded, Head Rest

SELF PROPELLED

Self Propel Mobile Shower Commode with Swingaway Footrests

•

•

•

•

•

Code	Capacity	Seat Width	Arm Rest	Back Rest
KA120SRC	120Kg	320mm	Swing-up	Straps
KA120SRJ	200Kg	400mm	Swing-up	Straps
KA120SR	200Kg	445mm	Swing-up	Straps
KA120SR-HA, Height Adjustable	200Kg	445mm	Swing-up	Straps
KA130S, Folding	200Kg	445mm	Swing-up	Straps
KA120SR50	200Kg	500mm	Swing-up, Padded	Straps
KA120SR55	300Kg	550mm	Removable, Padded	Padded
KA120SR60	300Kg	600mm	Removable, Padded	Padded
KA120SR65	300Kg	650mm	Removable, Padded	Padded

Self Propel Mobile Shower Commode with Slideout Footplate
(Weight Bearing)

•

Code	Capacity	Seat Width	Arm Rest	Back Rest
KA123S	200Kg	445mm	Swing-up	Straps

SHOWER COMMODE SEATS

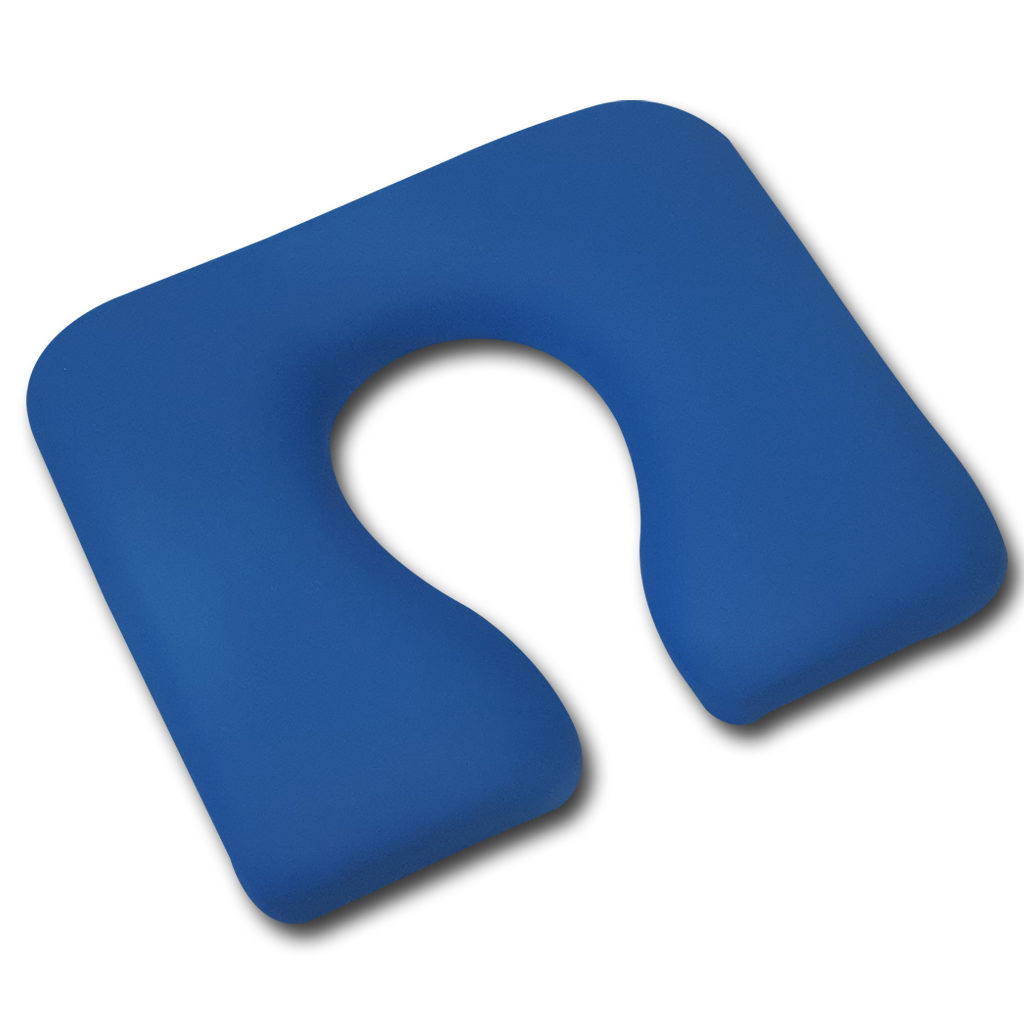

Polyurethane Commode Seats

• Polyurethane injection-moulded seat, 40mm thick.
• Includes pan carrier runners.
• Cost effective, comfortable economy seat.
• Clip-on design allows quick removal for cleaning and servicing.
• Suits 445mm wide mobile shower commodes only.

•

•

Handmade Vinyl Commode Seats

• Single density vinyl covered commode seat, 50mm thick.
• Includes pan carrier runners.
• Waterproof cover for ease of cleaning.
• Anti fungal and anti bacterial.
• Flame retardant and abrasion tested.

•

•

•

•

Left Side and Right Side Opening seats also available

ACCESSORIES

Commode Pan & Bowl Carriers

•

•

• Commode Pan & Bowl Carrier, KA11SPB
• Compatible with both K Care commode pans (KA11B) and bowls with lid (KA50B).
• Suitable for use on 445mm – 650mm width commodes.
• Rigid stainless steel construction.
• Also available
  • Paediatric Bowl Carrier, Stainless Steel, KA11SBCP
  • Junior Bed Pan Carrier, Stainless Steel, KA11SPJP
  • Junior Bowl Carrier, Stainless Steel, KA11SBJP

Commode Pan & Bowl

•
